Our certified technicians begin by:

• Securing the pump with stainless steel bolts and watertight seals to prevent corrosion and ensure a tight, lasting fit.
• Installing submersible-rated wiring—either 2-wire or 3-wire systems—to suit your pump model and well specifications.

We use only high-grade materials:

• PVC or polyethylene drop pipe, carefully sized and cut for your specific well depth.

• A torque arrestor to stabilize the pump during start-up and operation.

• A stainless steel backup safety cable to secure the pump during and after installation.

We precisely position the pump:

• Setting it 10 to 20 feet above the bottom of the well to avoid sediment intake and extend the system’s life.
• Using either a mechanical hoist or a coordinated team approach for deeper well installations.

To direct water flow underground:

• We install a pitless adapter below the frost line, ensuring reliable winter operation and sanitary water transfer.
• This connection also allows for easy pump servicing in the future.

To protect your water supply:

• We install a sanitary well cap and electrical grommets to seal out contaminants and weather elements.

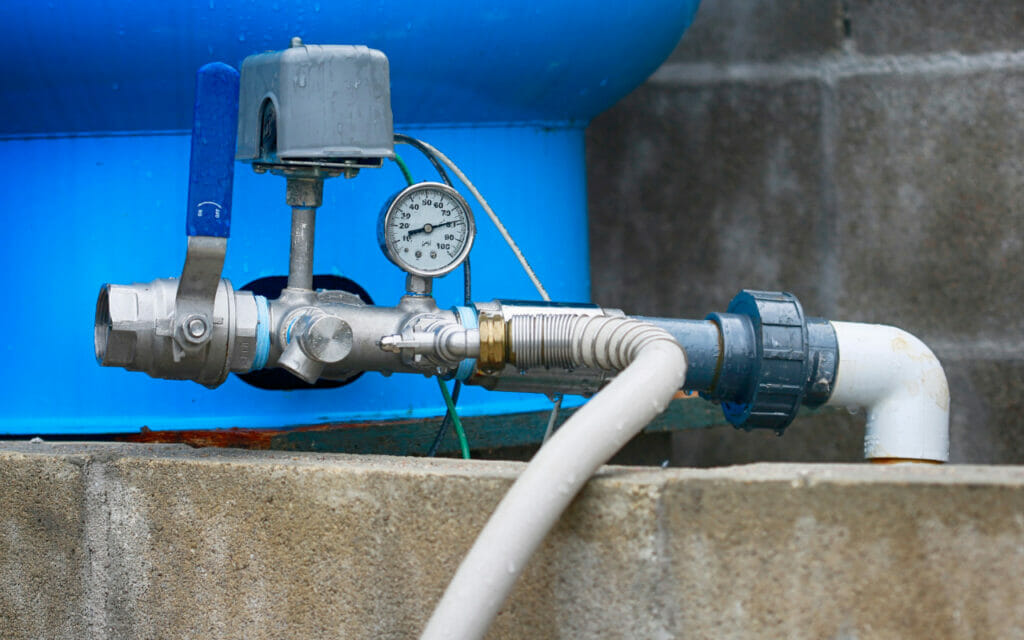

Inside your home or facility, we configure:

• A pressure tank for consistent water pressure

• A pressure switch and gauge to monitor system function

• A check valve to prevent backflow and water hammer

To ensure top performance, we:

• Prime the pump to initiate water delivery

• Run a full pressure and flow test

• Conduct a leak check and confirm all components are functioning at optimal levels
